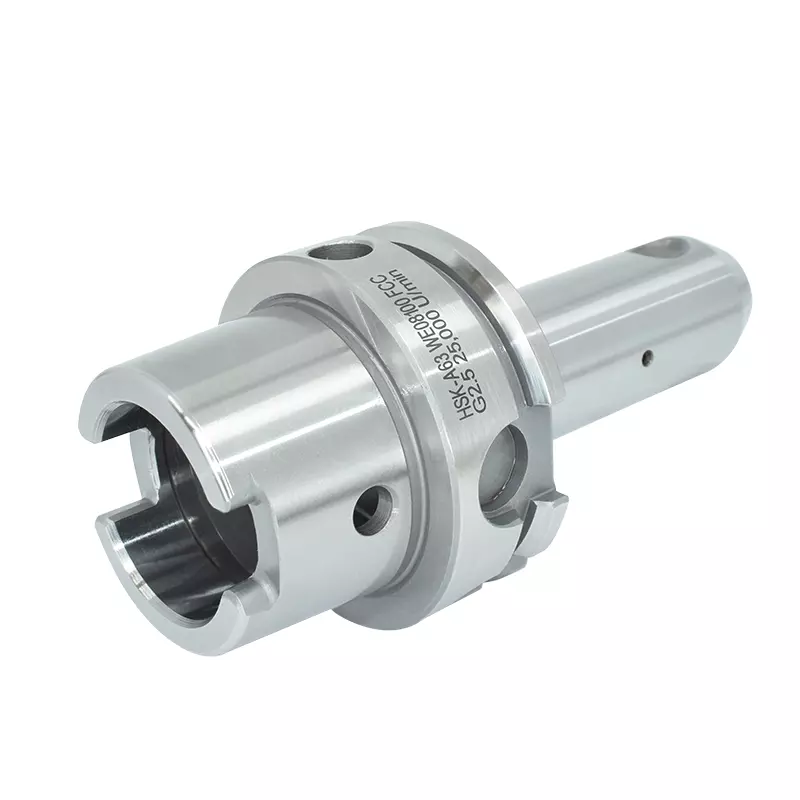

HSK-A 63 (DIN 69893 - 1) Weldon KKB
Produktnummer:
H63A-18-080 KKB LC
Produktinformationen "HSK-A 63 (DIN 69893 - 1) Weldon KKB"
HSK-A 63 (DIN 69893 - 1) Weldon KKB
(
Wuchtgüte 2.5 G 25000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist <0.005 mm
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist <0.005 mm

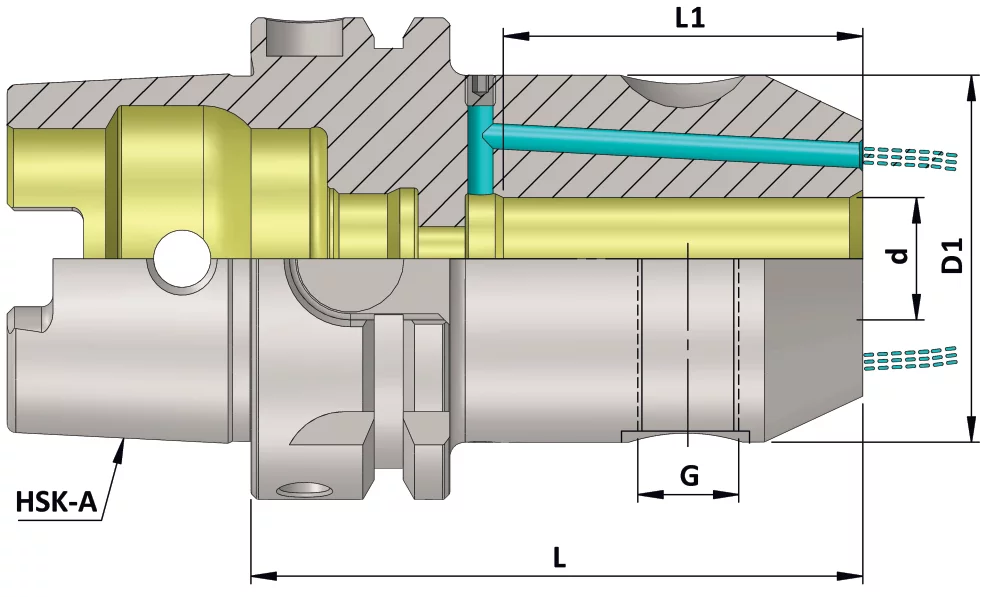

| Artikelbezeichnung | Artikelcode | HSK-A | d | D1 | G | L | L1 | Anzahl Schrauben |
| HSK-A 63 WE06 065 FCC 2.5G 25000 SL | H63A-06-065 KKB LC | 63 | 6 | 25 | M6 | 65 | 35 | 1 |
| HSK-A 63 WE06 100 FCC 2.5G 25000 SL | H63A-06-100 KKB LC | 63 | 6 | 25 | M6 | 100 | 35 | 1 |
| HSK-A 63 WE06 160 FCC 2.5G 25000 SL | H63A-06-160 KKB LC | 63 | 6 | 25 | M6 | 160 | 35 | 1 |
| HSK-A 63 WE08 065 FCC 2.5G 25000 SL | H63A-08-065 KKB LC | 63 | 8 | 28 | M8 | 65 | 35 | 1 |
| HSK-A 63 WE08 100 FCC 2.5G 25000 SL | H63A-08-100 KKB LC | 63 | 8 | 28 | M8 | 100 | 35 | 1 |
| HSK-A 63 WE08 160 FCC 2.5G 25000 SL | H63A-08-160 KKB LC | 63 | 8 | 28 | M8 | 160 | 35 | 1 |
| HSK-A 63 WE10 065 FCC 2.5G 25000 SL | H63A-10-065 KKB LC | 63 | 10 | 35 | M10 | 65 | 39 | 1 |
| HSK-A 63 WE10 100 FCC 2.5G 25000 SL | H63A-10-100 KKB LC | 63 | 10 | 35 | M10 | 100 | 39 | 1 |
| HSK-A 63 WE10 160 FCC 2.5G 25000 SL | H63A-10-160 KKB LC | 63 | 10 | 35 | M10 | 160 | 39 | 1 |
| HSK-A 63 WE12 080 FCC 2.5G 25000 SL | H63A-12-080 KKB LC | 63 | 12 | 42 | M12 | 80 | 44 | 1 |
| HSK-A 63 WE12 100 FCC 2.5G 25000 SL | H63A-12-100 KKB LC | 63 | 12 | 42 | M12 | 100 | 44 | 1 |
| HSK-A 63 WE12 160 FCC 2.5G 25000 SL | H63A-12-160 KKB LC | 63 | 12 | 42 | M12 | 160 | 44 | 1 |
| HSK-A 63 WE14 080 FCC 2.5G 25000 SL | H63A-14-080 KKB LC | 63 | 14 | 44 | M12 | 80 | 44 | 1 |
| HSK-A 63 WE14 100 FCC 2.5G 25000 SL | H63A-14-100 KKB LC | 63 | 14 | 44 | M12 | 100 | 44 | 1 |
| HSK-A 63 WE14 160 FCC 2.5G 25000 SL | H63A-14-160 KKB LC | 63 | 14 | 44 | M12 | 160 | 44 | 1 |
| HSK-A 63 WE16 080 FCC 2.5G 25000 SL | H63A-16-080 KKB LC | 63 | 16 | 48 | M14 | 80 | 47 | 1 |
| HSK-A 63 WE16 100 FCC 2.5G 25000 SL | H63A-16-100 KKB LC | 63 | 16 | 48 | M14 | 100 | 47 | 1 |
| HSK-A 63 WE16 160 FCC 2.5G 25000 SL | H63A-16-160 KKB LC | 63 | 16 | 48 | M14 | 160 | 47 | 1 |
| HSK-A 63 WE18 080 FCC 2.5G 25000 SL | H63A-18-080 KKB LC | 63 | 18 | 50 | M14 | 80 | 47 | 1 |
| HSK-A 63 WE18 100 FCC 2.5G 25000 SL | H63A-18-100 KKB LC | 63 | 18 | 50 | M14 | 100 | 47 | 1 |
| HSK-A 63 WE18 160 FCC 2.5G 25000 SL | H63A-18-160 KKB LC | 63 | 18 | 50 | M14 | 160 | 47 | 1 |
| HSK-A 63 WE20 080 FCC 2.5G 25000 SL | H63A-20-080 KKB LC | 63 | 20 | 52 | M16 | 80 | 49 | 1 |
| HSK-A 63 WE20 100 FCC 2.5G 25000 SL | H63A-20-100 KKB LC | 63 | 20 | 52 | M16 | 100 | 49 | 1 |
| HSK-A 63 WE20 160 FCC 2.5G 25000 SL | H63A-20-160 KKB LC | 63 | 20 | 52 | M16 | 160 | 49 | 1 |
| HSK-A 63 WE25 110 FCC 2.5G 25000 SL | H63A-25-110 KKB LC | 63 | 25 | 65 | M18X2 | 110 | 54 | 2 |
| HSK-A 63 WE25 160 FCC 2.5G 25000 SL | H63A-25-160 KKB LC | 63 | 25 | 65 | M18X2 | 160 | 54 | 2 |
| HSK-A 63 WE32 110 FCC 2.5G 25000 SL | H63A-32-110 KKB LC | 63 | 32 | 72 | M20X2 | 110 | 58 | 2 |
| HSK-A 63 WE32 160 FCC 2.5G 25000 SL | H63A-32-160 KKB LC | 63 | 32 | 72 | M20X2 | 160 | 58 | 2 |
| HSK-A 63 WE40 125 FCC 2.5G 25000 SL | H63A-40-125 KKB LC | 63 | 40 | 80 | M20X2 | 125 | 68 | 2 |
| HSK-A 63 WE40 160 FCC 2.5G 25000 SL | H63A-40-160 KKB LC | 63 | 40 | 80 | M20X2 | 160 | 68 | 2 |
