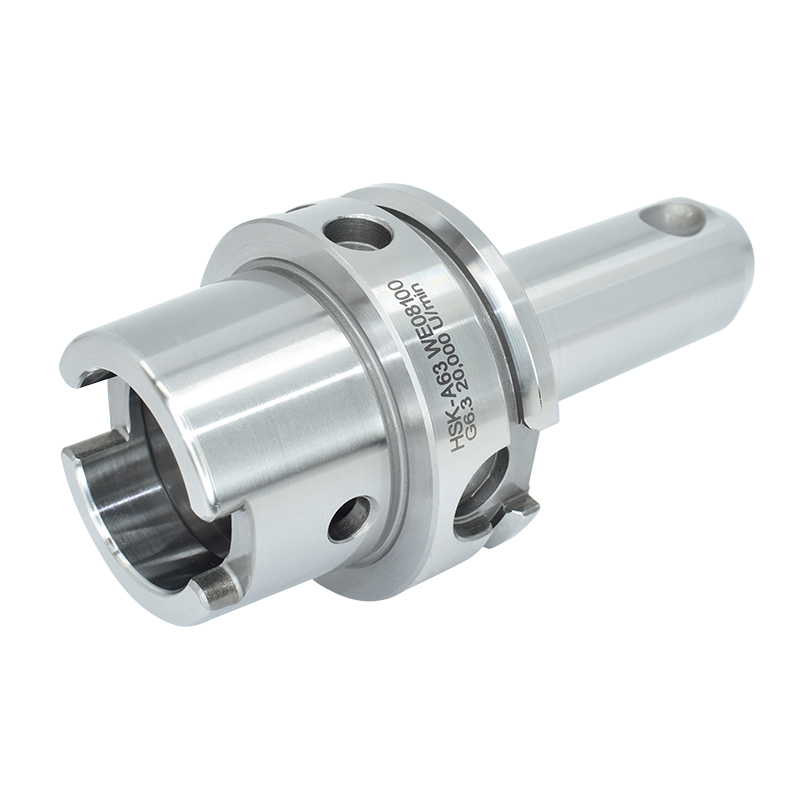

HSK-A 63 (DIN 69893-1) Weldon
Produktnummer: H63A-20-080 LC
Produktinformationen "HSK-A 63 (DIN 69893-1) Weldon"
HSK-A 63 (DIN 69893-1) Weldon
(Wuchtgüte 6.3 G 20000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist < 0.005 mm
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist < 0.005 mm

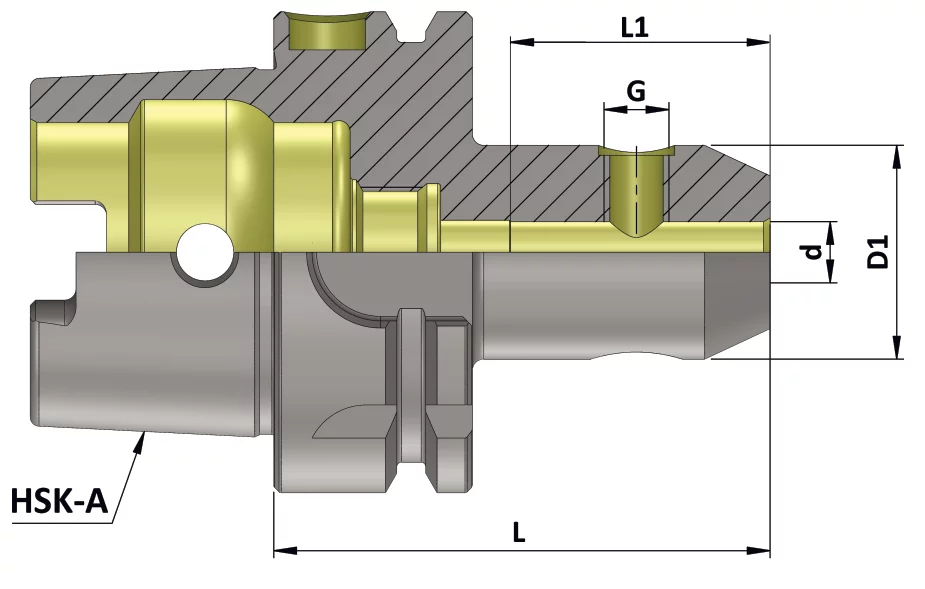

| Artikelbezeichnung | Artikelcode | HSK-A | d | D1 | G | L | L1 | Anzahl Schrauben |
| HSK-A63 WE06 065 6.3G 20000 SL | H63A-06-065 LC | 63 | 6 | 25 | M6 | 65 | 35 | 1 |
| HSK-A63 WE06 100 6.3G 20000 SL | H63A-06-100 LC | 63 | 6 | 25 | M6 | 100 | 35 | 1 |
| HSK-A63 WE06 160 6.3G 20000 SL | H63A-06-160 LC | 63 | 6 | 25 | M6 | 160 | 35 | 1 |
| HSK-A63 WE08 065 6.3G 20000 SL | H63A-08-065 LC | 63 | 8 | 28 | M8 | 65 | 35 | 1 |
| HSK-A63 WE08 100 6.3G 20000 SL | H63A-08-100 LC | 63 | 8 | 28 | M8 | 100 | 35 | 1 |
| HSK-A63 WE08 160 6.3G 20000 SL | H63A-08-160 LC | 63 | 8 | 28 | M8 | 160 | 35 | 1 |
| HSK-A63 WE10 065 6.3G 20000 SL | H63A-10-065 LC | 63 | 10 | 35 | M10 | 65 | 39 | 1 |
| HSK-A63 WE10 100 6.3G 20000 SL | H63A-10-100 LC | 63 | 10 | 35 | M10 | 100 | 39 | 1 |
| HSK-A63 WE10 160 6.3G 20000 SL | H63A-10-160 LC | 63 | 10 | 35 | M10 | 160 | 39 | 1 |
| HSK-A63 WE12 080 6.3G 20000 SL | H63A-12-080 LC | 63 | 12 | 42 | M12 | 80 | 44 | 1 |
| HSK-A63 WE12 100 6.3G 20000 SL | H63A-12-100 LC | 63 | 12 | 42 | M12 | 100 | 44 | 1 |
| HSK-A63 WE12 160 6.3G 20000 SL | H63A-12-160 LC | 63 | 12 | 42 | M12 | 160 | 44 | 1 |
| HSK-A63 WE14 080 6.3G 20000 SL | H63A-14-080 LC | 63 | 14 | 44 | M12 | 80 | 44 | 1 |
| HSK-A63 WE14 100 6.3G 20000 SL | H63A-14-100 LC | 63 | 14 | 44 | M12 | 100 | 44 | 1 |
| HSK-A63 WE14 160 6.3G 20000 SL | H63A-14-160 LC | 63 | 14 | 44 | M12 | 160 | 44 | 1 |
| HSK-A63 WE16 080 6.3G 20000 SL | H63A-16-080 LC | 63 | 16 | 48 | M14 | 80 | 47 | 1 |
| HSK-A63 WE16 100 6.3G 20000 SL | H63A-16-100 LC | 63 | 16 | 48 | M14 | 100 | 47 | 1 |
| HSK-A63 WE16 160 6.3G 20000 SL | H63A-16-160 LC | 63 | 16 | 48 | M14 | 160 | 47 | 1 |
| HSK-A63 WE18 080 6.3G 20000 SL | H63A-18-080 LC | 63 | 18 | 50 | M14 | 80 | 47 | 1 |
| HSK-A63 WE18 100 6.3G 20000 SL | H63A-18-100 LC | 63 | 18 | 50 | M14 | 100 | 47 | 1 |
| HSK-A63 WE18 160 6.3G 20000 SL | H63A-18-160 LC | 63 | 18 | 50 | M14 | 160 | 47 | 1 |
| HSK-A63 WE 20 080 6.3G 20000 SL | H63A-20-080 LC | 63 | 20 | 52 | M16 | 80 | 49 | 1 |
| HSK-A 100 WE 06 160 6.3G 20000 SL | H100A-06-160 LC | 100 | 6 | 25 | M6 | 160 | 35 | 1 |
| HSK-A 100 WE 08 080 6.3G 20000 SL | H100A-08-080 LC | 100 | 8 | 28 | M8 | 80 | 35 | 1 |
| HSK-A 100 WE 08 160 6.3G 20000 SL | H100A-08-160 LC | 100 | 8 | 28 | M8 | 160 | 35 | 1 |
| HSK-A 100 WE 10 080 6.3G 20000 SL | H100A-10-080 LC | 100 | 10 | 35 | M10 | 80 | 39 | 1 |
| HSK-A 100 WE 10 160 6.3G 20000 SL | H100A-10-160 LC | 100 | 10 | 35 | M10 | 160 | 39 | 1 |
| HSK-A 100 WE 12 100 6.3G 20000 SL | H100A-12-100 LC | 100 | 12 | 42 | M12 | 100 | 44 | 1 |
| HSK-A 100 WE 12 160 6.3G 20000 SL | H100A-12-160 LC | 100 | 12 | 42 | M12 | 160 | 44 | 1 |
| HSK-A 100 WE 14 100 6.3G 20000 SL | H100A-14-100 LC | 100 | 14 | 44 | M12 | 100 | 44 | 1 |
| HSK-A 100 WE 14 160 6.3G 20000 SL | H100A-14-160 LC | 100 | 14 | 44 | M12 | 160 | 44 | 1 |
| HSK-A 100 WE 16 100 6.3G 20000 SL | H100A-16-100 LC | 100 | 16 | 48 | M14 | 100 | 47 | 1 |
| HSK-A 100 WE 16 160 6.3G 20000 SL | H100A-16-160 LC | 100 | 16 | 48 | M14 | 160 | 47 | 1 |
| HSK-A 100 WE 18 100 6.3G 20000 SL | H100A-18-100 LC | 100 | 18 | 50 | M14 | 100 | 47 | 1 |
| HSK-A 100 WE 18 160 6.3G 20000 SL | H100A-18-160 LC | 100 | 18 | 50 | M14 | 160 | 47 | 1 |
| HSK-A 100 WE 20 100 6.3G 20000 SL | H100A-20-100 LC | 100 | 20 | 52 | M16 | 100 | 49 | 1 |
| HSK-A 100 WE 20 160 6.3G 20000 SL | H100A-20-160 LC | 100 | 20 | 52 | M16 | 160 | 49 | 1 |
| HSK-A 100 WE 25 100 6.3G 20000 SL | H100A-25-100 LC | 100 | 25 | 65 | M18X2 | 100 | 54 | 2 |
| HSK-A 100 WE 25 160 6.3G 20000 SL | H100A-25-160 LC | 100 | 25 | 65 | M18X2 | 160 | 54 | 2 |
| HSK-A 100 WE 32 120 6.3G 20000 SL | H100A-32-120 LC | 100 | 32 | 72 | M20X2 | 120 | 58 | 2 |
| HSK-A 100 WE 32 160 6.3G 20000 SL | H100A-32-160 LC | 100 | 32 | 72 | M20X2 | 160 | 58 | 2 |
| HSK-A 100 WE 40 120 6.3G 20000 SL | H100A-40-120 LC | 100 | 40 | 80 | M20X2 | 120 | 68 | 2 |
| HSK-A 100 WE 50 130 6.3G 20000 SL | H100A-50-130 LC | 100 | 50 | 100 | M24X2 | 130 | 78 | 2 |
